NEW!

Faster, Smaller, Smarter

QM-Fit streamlines non-contact dimensional inspection with smart recognition software.

Measure in Seconds, Not Minutes.

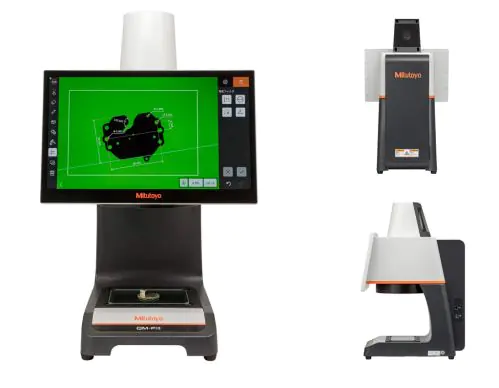

The Mitutoyo QM-Fit is a compact, fully automated digital smart vision system designed to deliver fast, accurate results without the need for setup or specialised training.

Simply place your part on the stage, and QM-Fit instantly captures dimensions with precision.

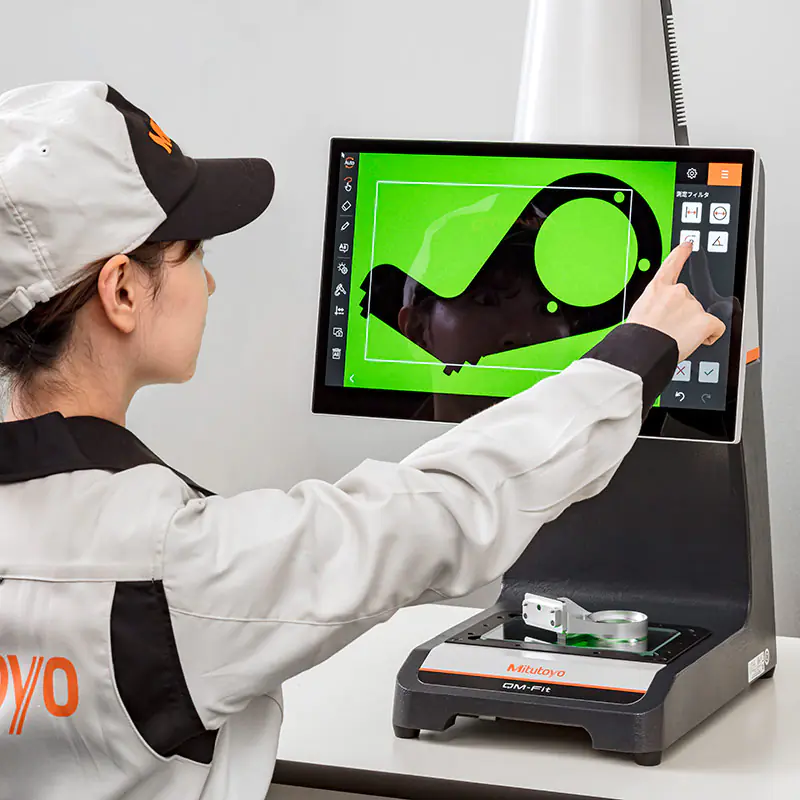

QM-Fit streamlines non-contact dimensional inspection with smart recognition software, a high-resolution 20 megapixel camera, and intuitive touch-screen guidance that anyone can operate.

Whether you’re checking thin parts, small components, or multiple features at once, the QM-Fit ensures repeatable accuracy in seconds from a system that fits on any desktop.

BOOK A DEMO

Automatic

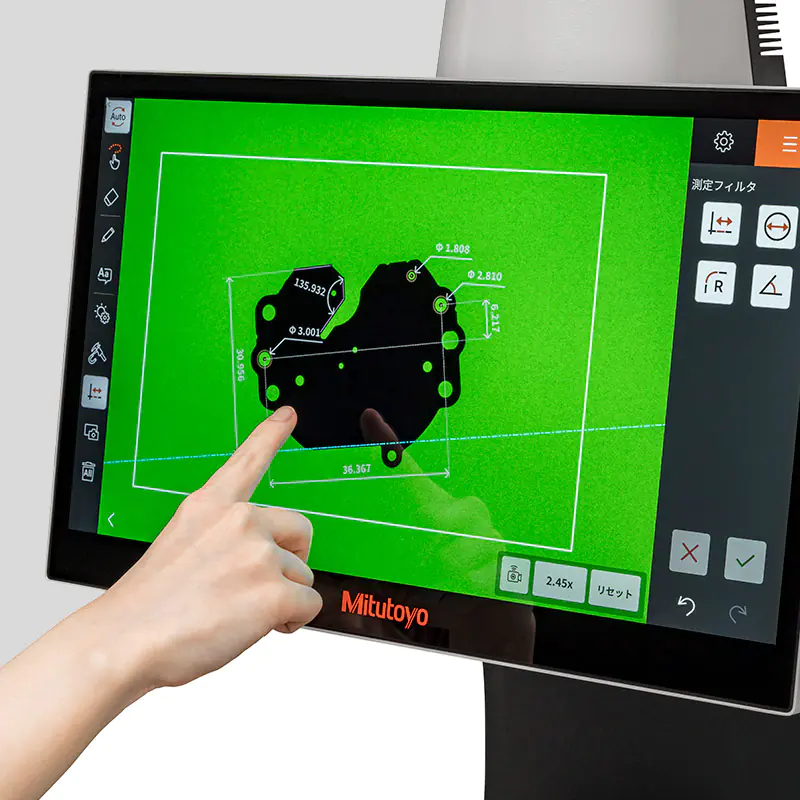

The QM-Fit detects multiple elements at once by automatically recognizing circles, lines and more with a single tap. Measurements can be performed quickly without the need to specify elements one by one in advance.

Fast

Caliper Snap - A quick measurement with virtual rulers. The rulers automatically snap to edges or circles when placed close to them. Unlike typical instruments, there is no need to align crosshairs, reducing time and effort.

Record

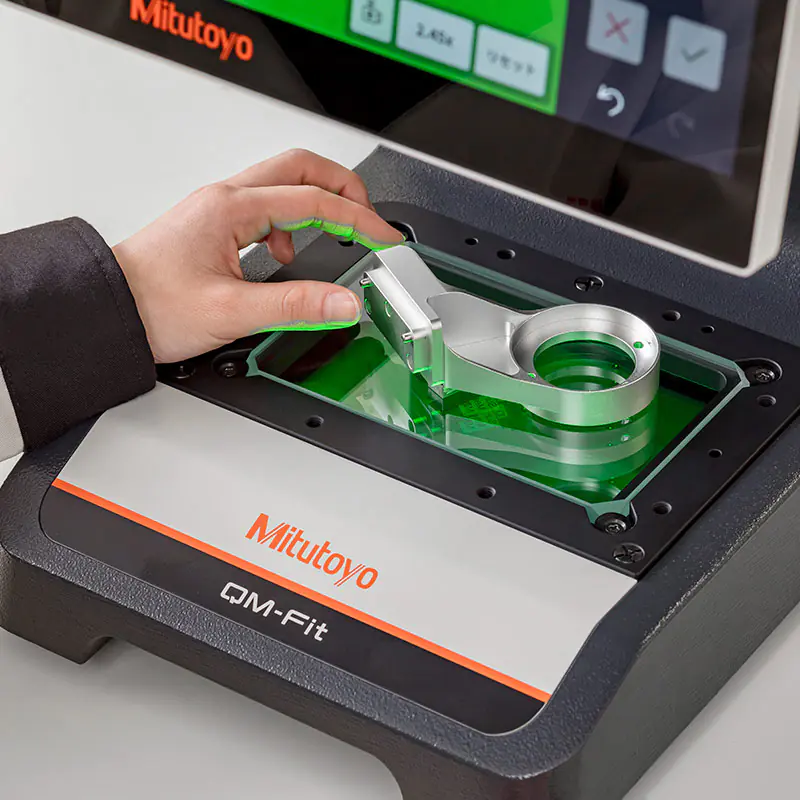

Simply place the workpiece on the stage for automatic inspection. Even if workpieces are randomly placed on the measuring stage, the QM-Fit can quickly recognise their shape, identify the workpiece, and immediately begin measurement.

Focus

Always in focus, even on tall surfaces. It clearly displays uneven parts with a height up to 36 mm and with deep depressions and protrusions. The extremely large depth of focus eliminates the need to adjust the focus for individual parts with different heights.

Compact, Desktop-Friendly Design

The QM-Fit is small enough to fit on a desktop yet powerful enough to deliver results comparable to larger measuring machines. It’s a standalone system with integrated PC and monitor that doesn’t require external hardware.

Stay Compliant with Confidence

The QM-Fit improves efficiency and strengthens quality control. Its built-in traceability ensures compliance with industry standards, and in-screen correction keeps accuracy stable even in environments outside the ideal 20°C.
